德國HALLE粗糙度計量校準片 PTB Standard Roughness Measurement Standard

在許多工業領域中，表面粗糙度測量起著重要的作用，德國HALLE提供各種國際標準的計較校準片，如粗糙度校準，深度校準，平坦度校準等，所有計量校準片均由PTB或DKD認證證書；
Roughness Measurement Standard(standard version)
LIne of products:KNT 4058/01
Classe A,with calibration certificate for the measurands:Ra,RZ and Rmax Ra=1.5um, Rz=8.5(nominally)
Item NO.:4058/01A3/PK (PTB calibration)

Designation

ISO-Type 5436-1

Design

Line of product


Stylus tip control standard

Type B

3 x 3 taper angles with
70°, 90° und 120°

KNT 4050/01

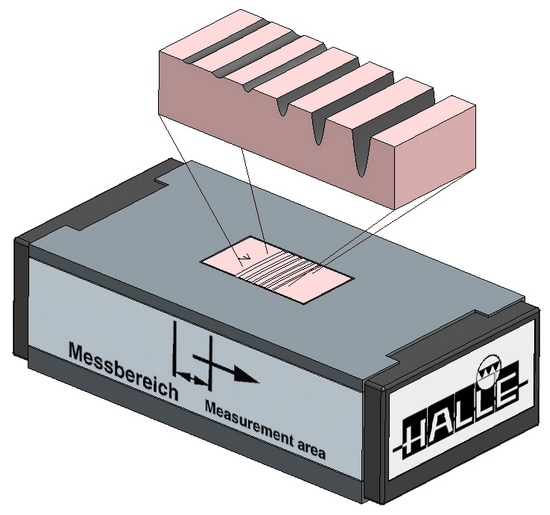

Depth setting standards

Type A

with round base grooves
(6 grooves and 3 grooves)

KNT 4060/03

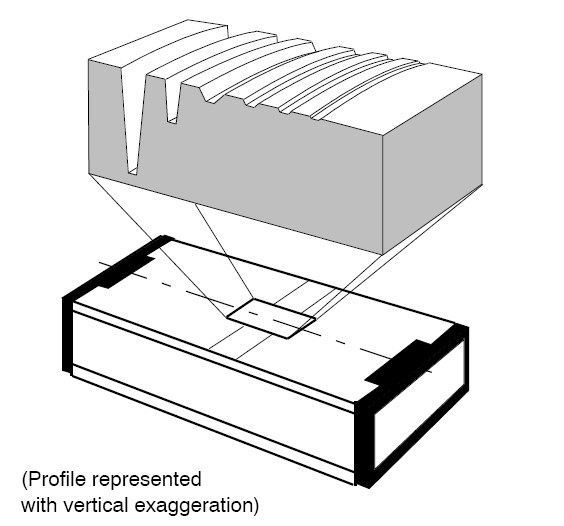

Depth setting standards

Type A

with planar grooves

KNT 4080/03

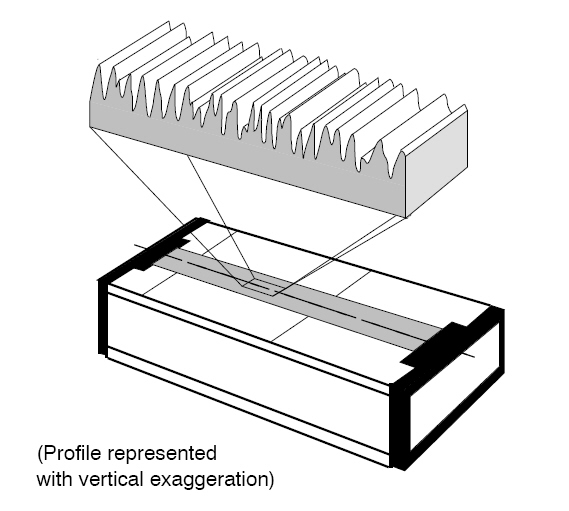

Roughness measurement
standards

Type D

standard

KNT 4058/01

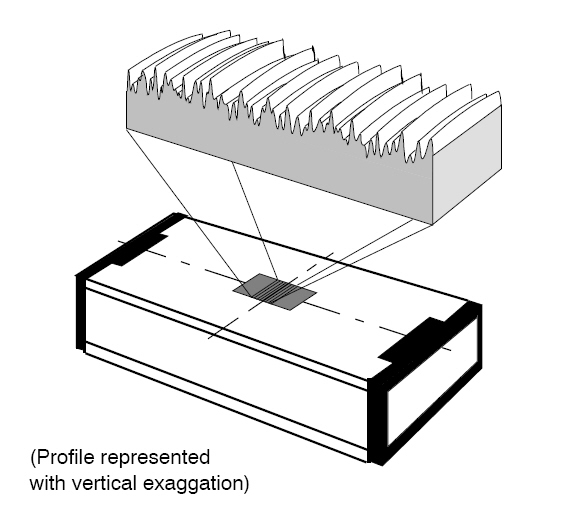

Roughness measurement
standards

Type D

inexpensive version

KNT 4058/03

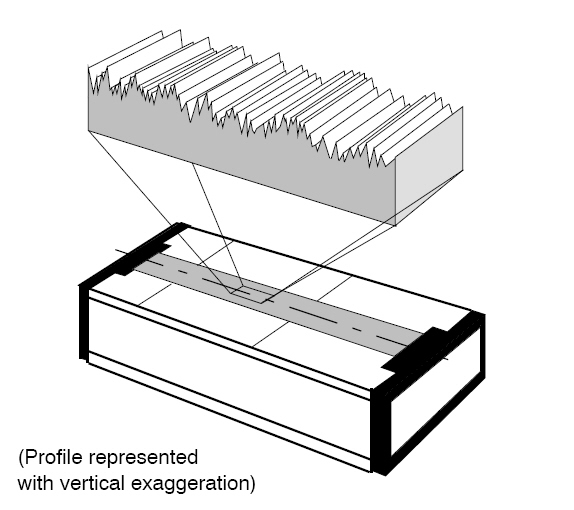

Roughness measurement
standards

Type D

for sheet metal surfaces

KNT 4058/02

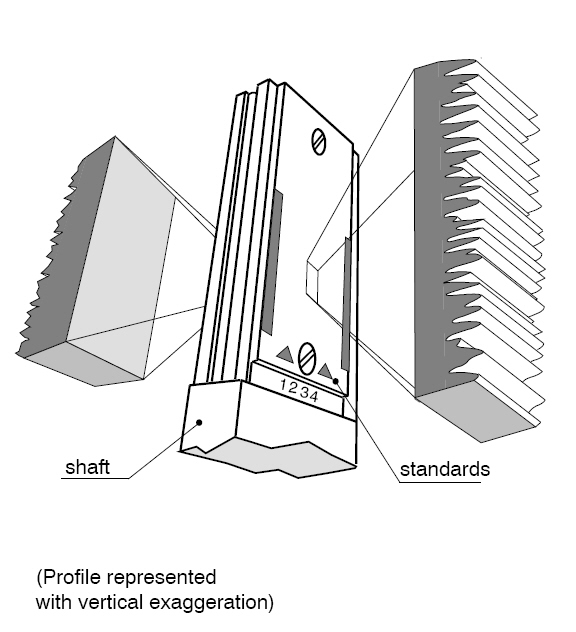

Roughness measurement
standards

Type D

for sheet metal measuring
stations
(for 2+4 Two-Button Stylus)

KNT 2058/05

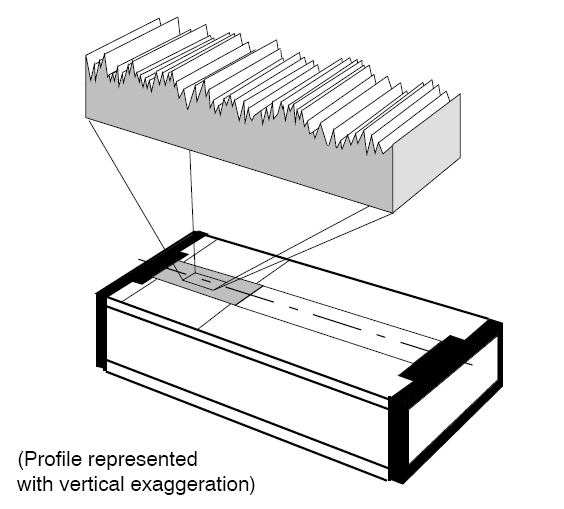

Roughness measurement
standards

Type D

superfine roughness profile

KNT 4070/03

Calibration costs
for recalibration

Comparison standards
for surface roughness

VOR 2090/01

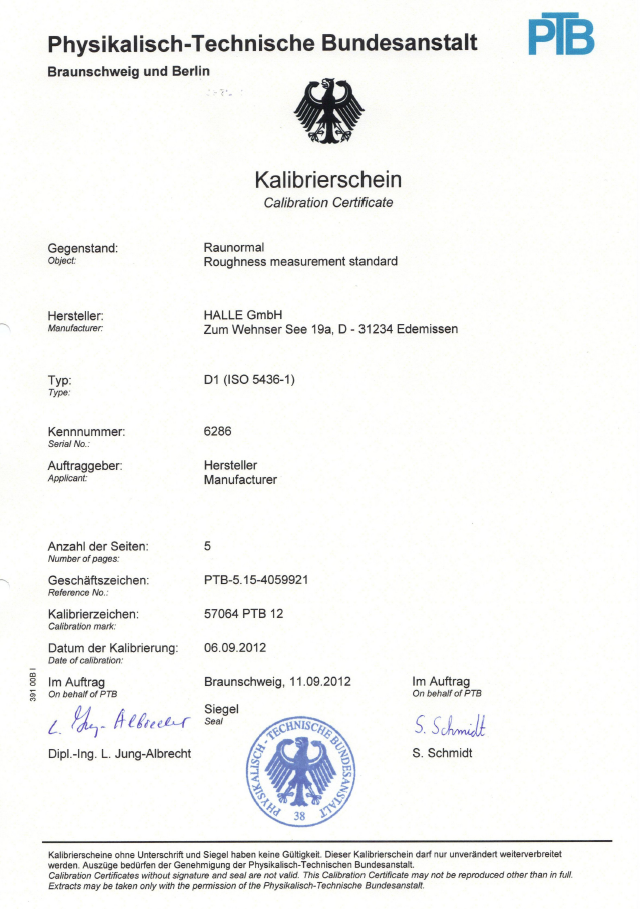

PTB Certificate
